MTIG AIR1
This content is still being prepared, but we will soon provide you with all the necessary information! Some details are already available. We are working on completing the technical specifications and additional information.
Thank you for your understanding!

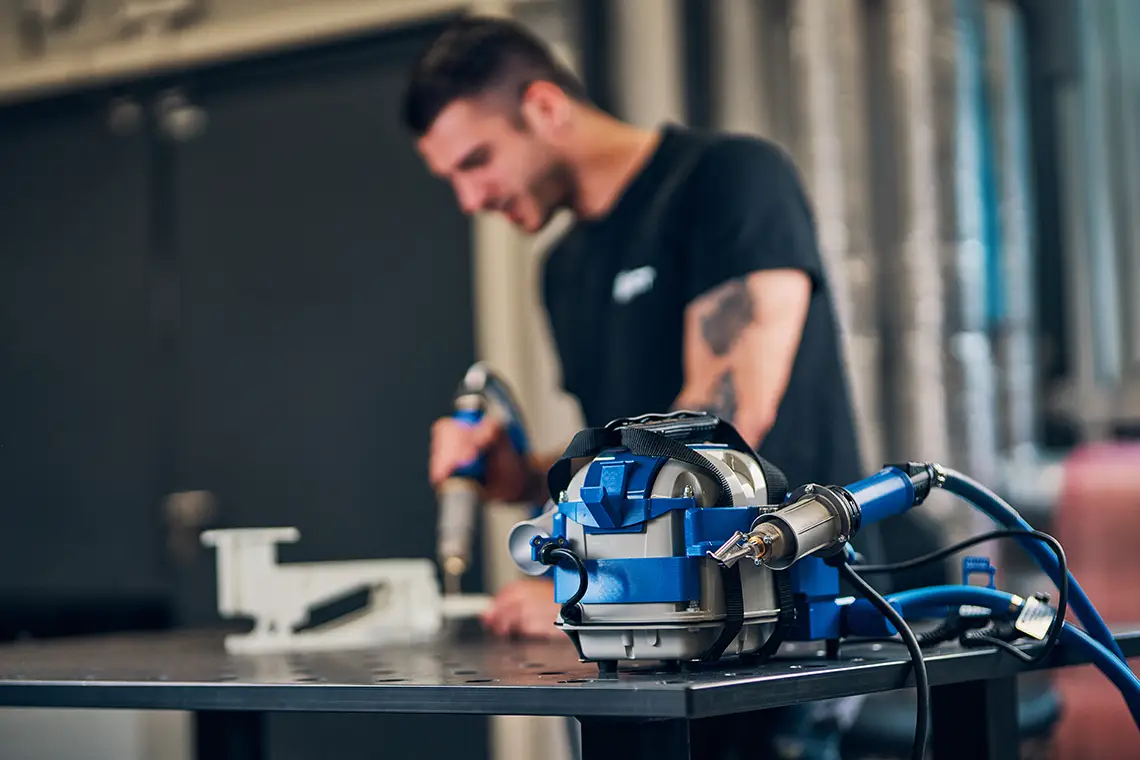

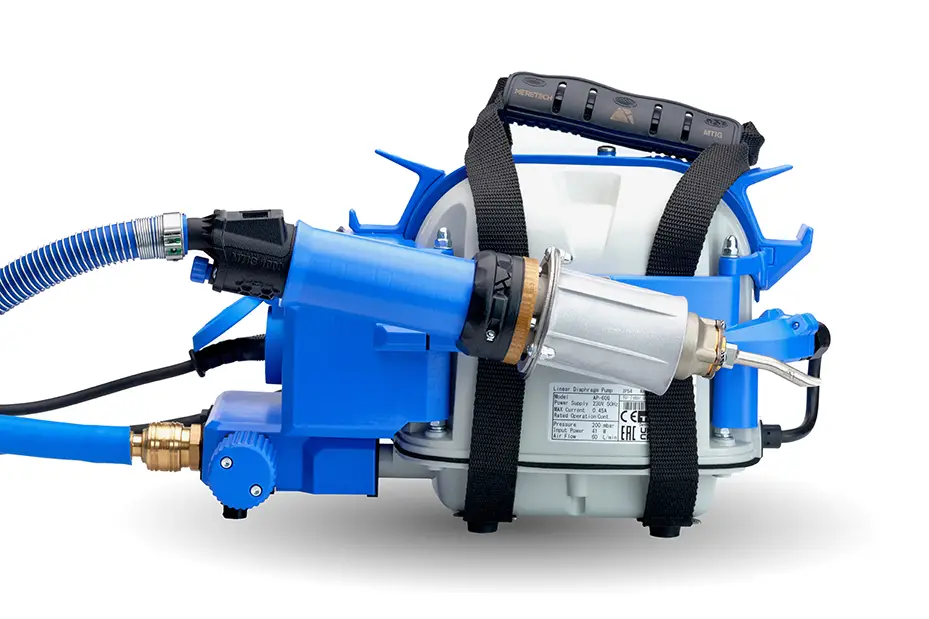

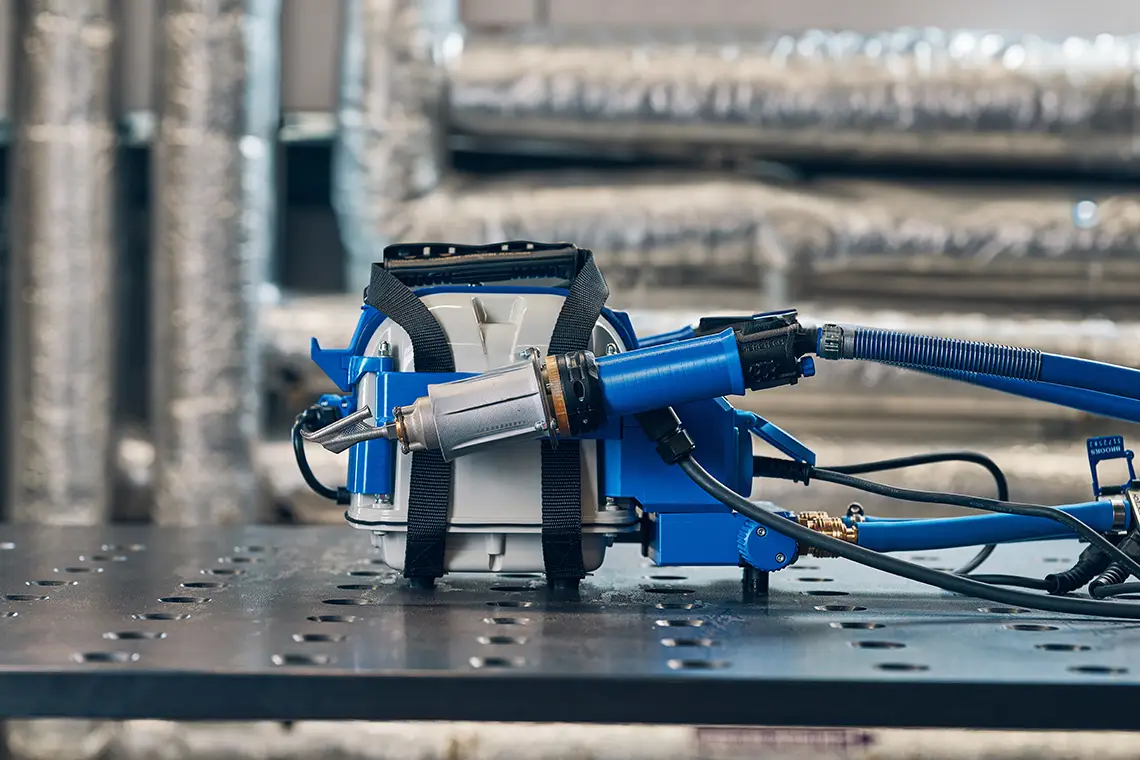

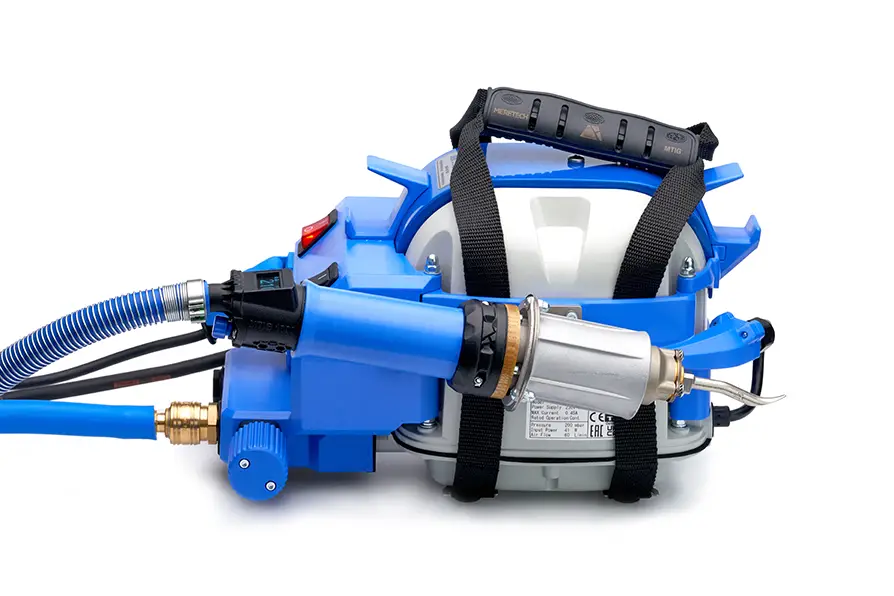

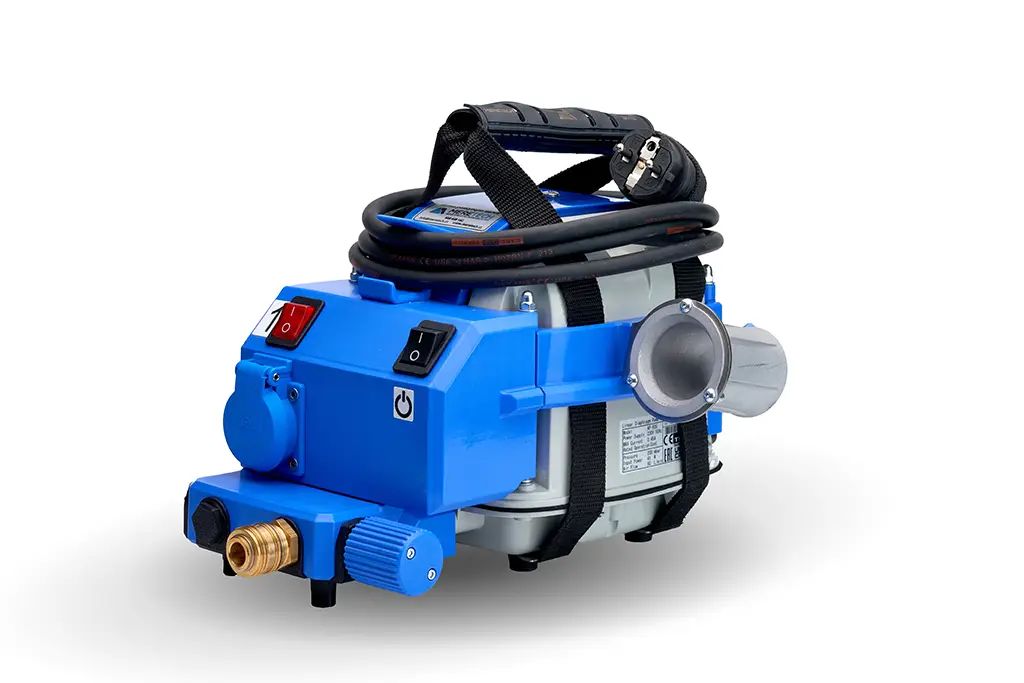

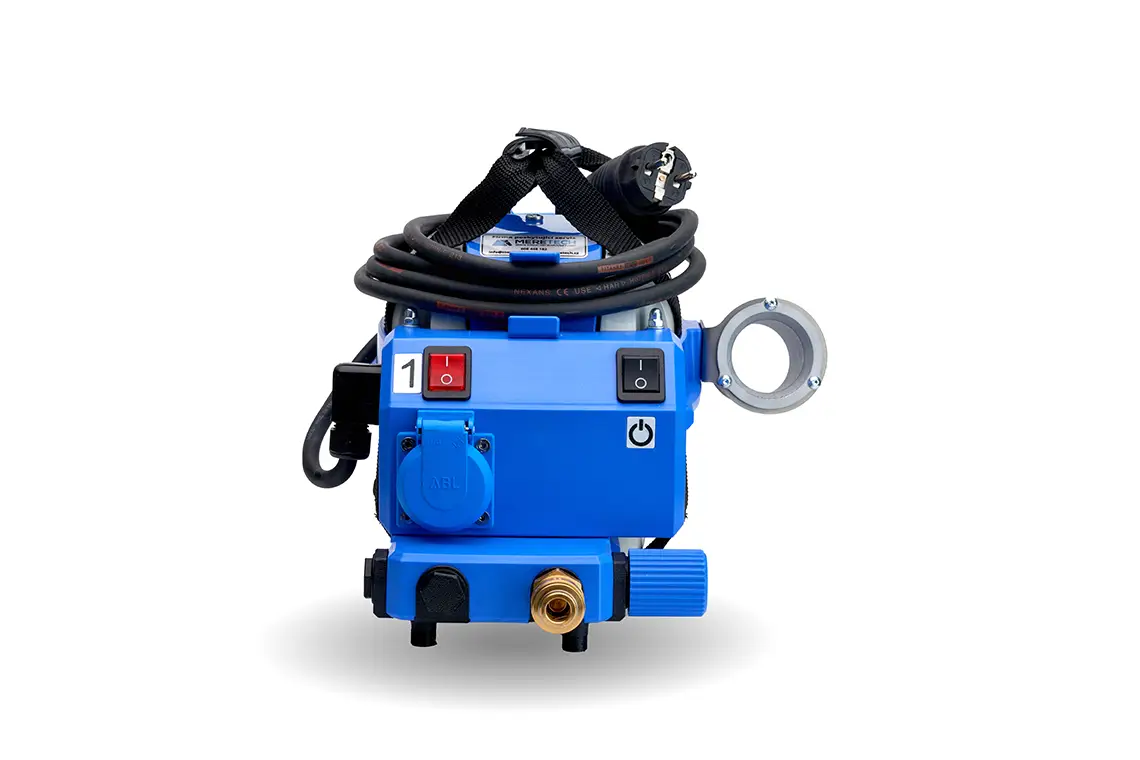

A quiet and lightweight blower, ideal as a mobile or workshop source of clean and dry air for MTIG welding guns. Suitable for connecting one MTIG gun.
- The quietest blower on the market – ideal for workplaces requiring low noise levels
- Adapter for connecting hot air devices included
- Convenient handle for easy handling

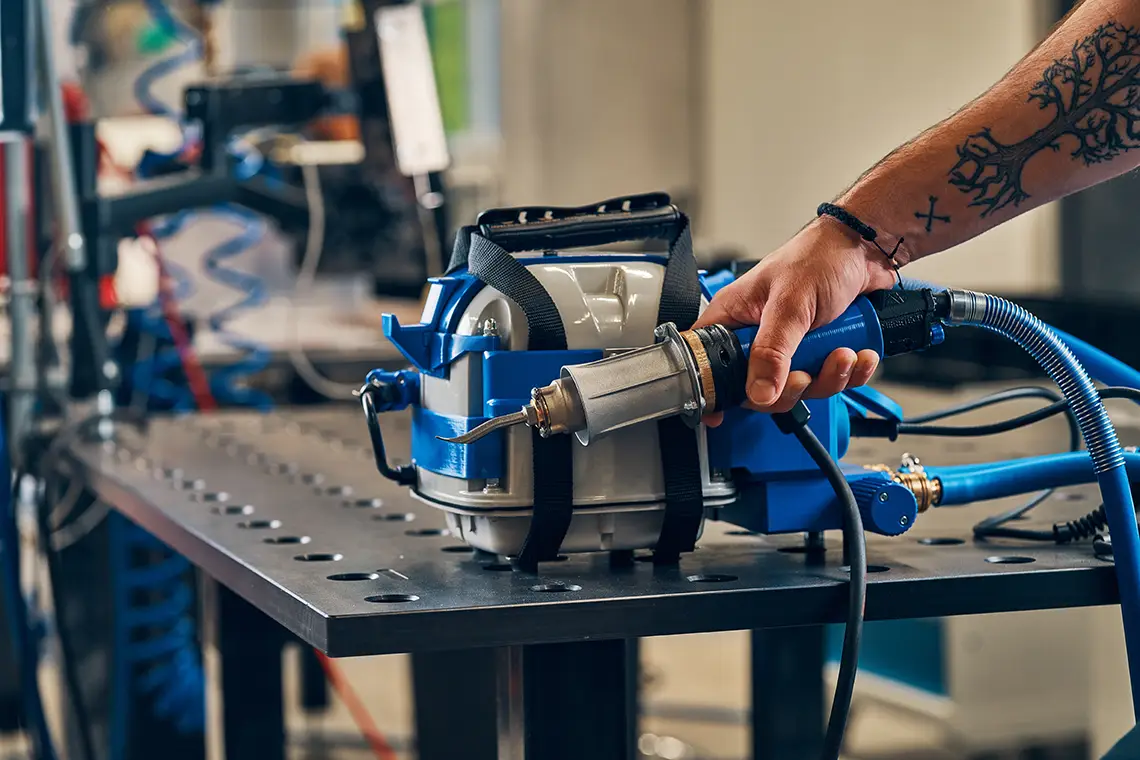

- Integrated holder for placing the MTIG welding gun

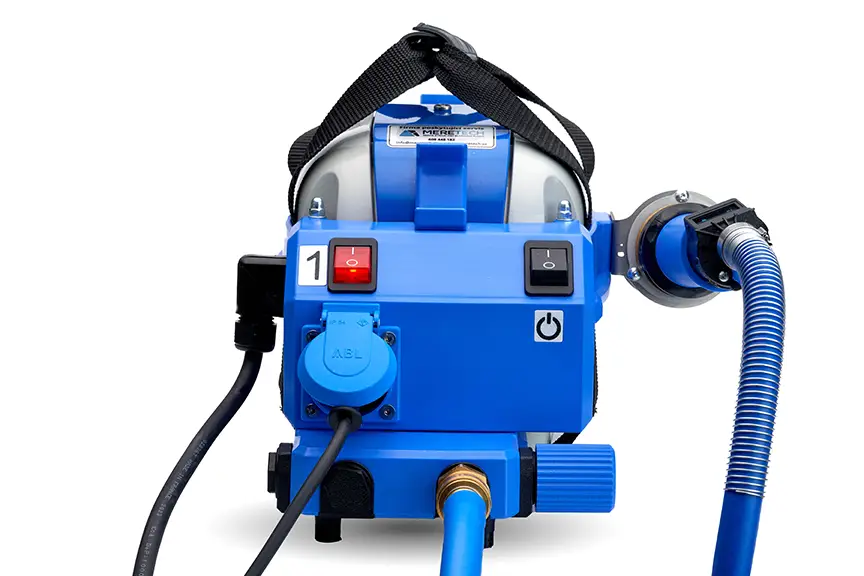

- Separate switch for the hot air gun and the blower
- Oil-free operation
- Easy maintenance
- Suitable for both outdoor and indoor use
- Low vibrations
- Cast iron blower casing improves cooling efficiency and extends the lifespan of the membranes
- Low power consumption
- Coil protection against overheating
- Long lifespan of membranes and moving parts
- Safety switch protecting the blower in case of membrane rupture, preventing damage to the magnet and coils
Technical Specifications
Voltage / frequency: 230V / 50Hz
Power consumption at 200 mbar pressure: 41 W
Noise level: 34 dB
Weight: 5.8 kg
Width: xxx mm
Depth: xxx mm
Height: xxx mm
Airflow
At 0 mbar pressure: 125 l/min
At 50 mbar pressure: 110 l/min
At 100 mbar pressure: 95 l/min
At 150 mbar pressure: 80 l/min
At 200 mbar pressure: 60 l/min
